Safety-Check Part Numbers

Safety-Check® Bolt-On Air Brake Adjustment Gauge Bulk Packaging

Each Axle Set Includes:

  • 2 GAUGES (PREASSEMBLED)
  • 2 CLEVIS PINS (PLAIN OR GREASABLE)
  • 2 INDICATORS AND COTTER PINS or 2 INDICATOR BRACKETS (TRAILER ONLY)
BULK PART #
APPLICATION
CLEVIS PIN
12311 STEER AXLE 1/2" - PLAIN
12321 STEER AXLE 1/2" - GREASABLE
14311 DRIVE AXLE 1/2" - PLAIN
14321 DRIVE AXLE 1/2" GREASABLE
12331 STEER AXLE 5/8" - PLAIN
12341 STEER AXLE 5/8" - GREASABLE
14331 DRIVE AXLE 5/8" - PLAIN
14341 DRIVE AXLE 5/8" GREASABLE
16351 TRAILER AXLE PLAIN
16361 TRAILER AXLE GREASABLE
16371 INTRAAX TRAILER AXLE PLAIN
16381 INTRAAX TRAILER AXLE GREASABLE

* For long stroke applications use LS after part number (Example 16381LS)

Bolt-On Air Brake Adjustment Gauge Bulk Packaging

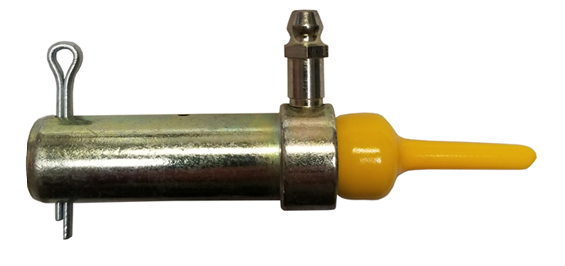

Safety-Check® GAUGE CLEVIS PINS - SPARES OR EXTRAS

PART # SIZE TYPE PACKAGING
70311 1/2" - PLAIN 12 PER BAG
70321 1/2"- GREASABLE 12 PER BAG
70331 5/8" - PLAIN 12 PER BAG
70341 5/8" - GREASABLE 12 PER BAG

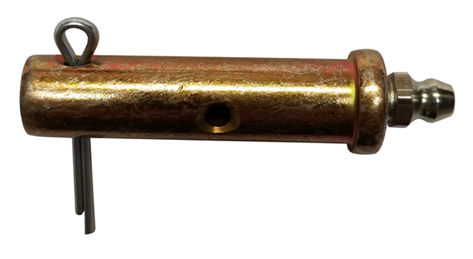

STANDARD GREASABLE CLEVIS PINS

(SUITABLE FOR AUTOMATIC OR MANUAL SLACK ADJUSTERS)

INCLUDES: CLEVIS PIN + GREASE FITTING + COTTER PIN

PART #
SIZE / TYPE
PACKAGING
80321 GREASABLE 100 PER BOX
80321-L 1/2” GREASABLE - STEMCO 100 PER BOX
80341 5/8” GREASABLE 100 PER BOX

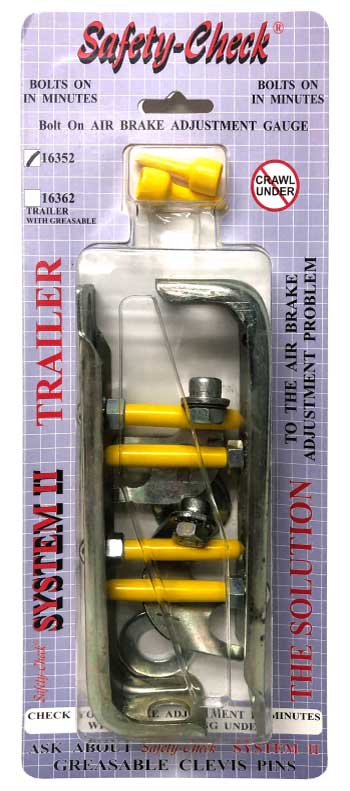

Bolt-On Air Brake Adjustment Gauge Display Pack - Blister Card

Each Axle Set Includes:

  • 2 GAUGES (PREASSEMBLED)
  • 2 CLEVIS PINS (PLAIN OR GREASABLE)
  • 2 INDICATORS AND COTTER PINS or 2 INDICATOR BRACKETS (TRAILER ONLY)

* GREASABLE CLEVIS PINS ARE OPTIONAL * STIPULATE 1/2" OR 5/8" CLEVIS PINS * DISPLAY PACK (BLISTER CARD) CONTAINS 1 AXLE SET (6 OR 12 AXLE SETS TO MASTER BOX)

BLISTER PACK #
APPLICATION
CLEVIS PIN
12312 STEER AXLE 1/2" - PLAIN
12322 STEER AXLE 1/2" - GREASABLE
13312 STEER AXLE - ALL GMC 1/2" - PLAIN
13322 STEER AXLE - ALL GMC 1/2" GREASABLE
14312 DRIVE AXLE 1/2" - PLAIN
14322 DRIVE AXLE 1/2" - GREASABLE
15312 DRIVE AXLE - CAMELBACK 1/2" - PLAIN
15322 DRIVE AXLE - CAMELBACK 1/2" GREASABLE
12332 STEER AXLE 5/8" - PLAIN
12342 STEER AXLE 5/8" - GREASABLE
14332 DRIVE AXLE 5/8" - PLAIN
14342 DRIVE AXLE 5/8" - GREASABLE
16352 TRAILER AXLE PLAIN
16362 TRAILER AXLE GREASABLE
16372 INTRAAX TRAILER AXLE PLAIN
16382 INTRAAX TRAILER AXLE GREASABLE

* For long stroke applications use LS after part number (Example 16382LS)

Bolt-On Air Brake Adjustment Gauge Bulk Packaging Bolt-On Air Brake Adjustment Gauge Bulk Packaging

STANDARD GREASABLE CLEVIS PINS - 1/2" and 5/8" DIAMETAR

(SUITABLE FOR AUTOMATIC OR MANUAL SLACK ADJUSTERS)

INCLUDES: 1/2" CLEVIS PIN + GREASE FITTING + COTTER PIN

BLISTER PART #
SIZE / TYPE
PACKAGING
80322 1/2" - GREASABLE 12 PER BLISTER CARD
80322-L 1/2" GREASABLE — STEMCO 12 Per Blister Cards
80342 5/8" GREASABLE 10 Per Bag

Safety-Check Systems Inc.

Insist on the Original. Insist on the Best. Insist on Mr. Safety-Check System II™. Full five year unlimited mileage warrenty. Safety-Check Systems Inc. manufactures a range of bolt-on air brake adjustment gauges to fit all makes of power units, trucks and trailers. The gauge bracket bolts on permanently to one of the existing chamber mounting studs.
